Packaging Details
Packaging & Delivery

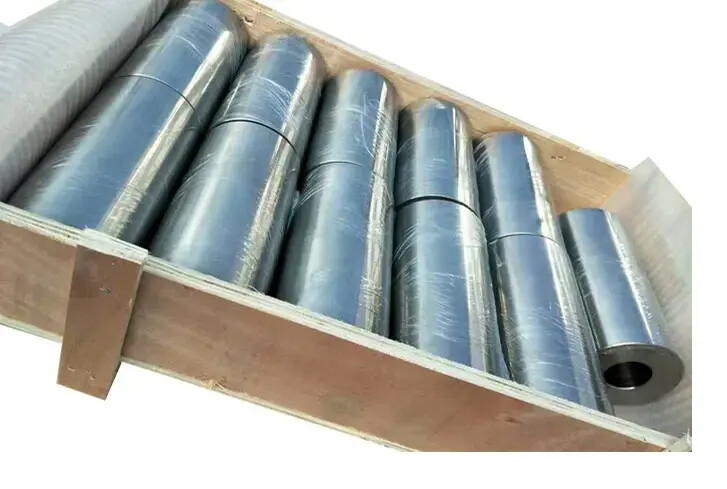

Packaging Details: Packed in Export Quality Plywood Box
Delivery Detail: 10--14 Working days
Port: shanghai



Product description:
Outside diameter, | Diameter tolerance, | Permissible variations , wall thinckness, |
in.(mm) | in.(mm) | t, % in.(mm) |
<1 (25.4) | ±0.004( ± 0.012) | ±10 |
1-1½(25.4-38.1) | ±0.005( ±0.127 ) | ±10 |
1½-2(38.1-50.8) | ±0.006( ± 0.152) | ±10 |
2-2½(50.8-63.5) | ±0.007( ± 0.178) | ±10 |
2½-3½(63.5-88.9) | ±0.010( ± 0.254) | ±10 |
1.Chemical requirements of titanium plate
| N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti |
Gr 1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | bal |
Gr 2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | bal |
Gr 3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | / | / | / | / | / | bal |
Gr 4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | / | / | / | / | / |
|
Gr 5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
Gr 7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
Gr 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
Gr12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
2.Tensile requirements of titanium plate
grade | Tensil strength(min) | Yeild strength(min) | Elongation(%) |
ksi | MPa | ksi | MPa |
1 | 35 | 240 | 20 | 138 | 24 |
2 | 50 | 345 | 40 | 275 | 20 |
3 | 65 | 450 | 55 | 380 | 18 |
4 | 80 | 550 | 70 | 483 | 15 |
5 | 130 | 895 | 120 | 828 | 10 |
7 | 50 | 345 | 40 | 275 | 20 |
9 | 90 | 620 | 70 | 438 | 15 |
12 | 70 | 438 | 50 | 345 | 18 |
3. Technological process of titanium plate

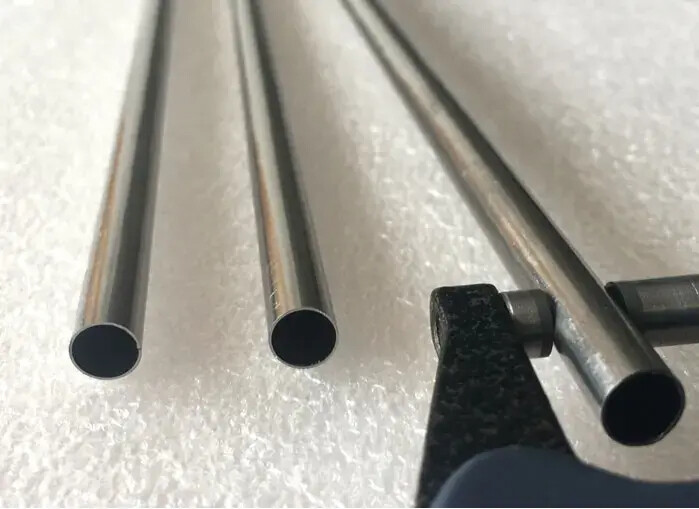

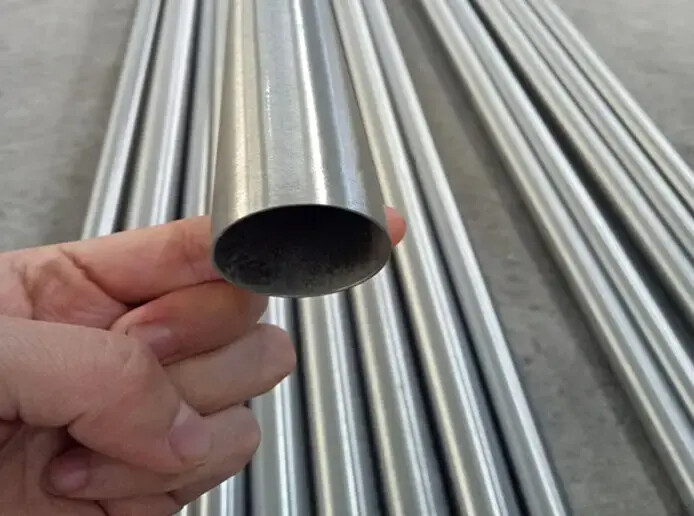

Shipping of titanium tube: High quality grade 5 titanium tube price per kg
TNT, EMS, UPS, FED, DHL, Air transport, Sea Transport, Railway Transport are available. Depends on your demands, we will try our best to choose the most suitable way for you. After we send the product, we will send the track number to you with Email, and also we will track this order until you can received successfully.
