description:

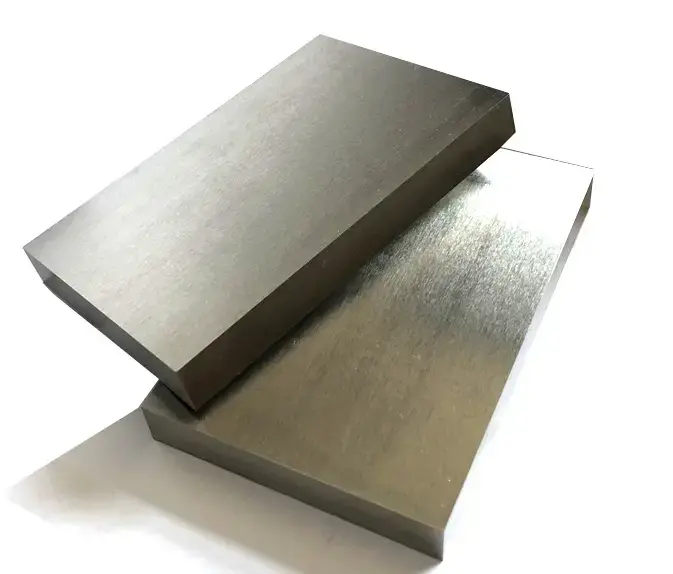

| Item | molybdenum sheet |
| Grade | Mo1, Mo2 |
| Stock size | 0.2mm, 0.5mm, 1mm, 2mm |
| MOQ | hot rolling, cleaning, polished |
| Stock | 1 kilograms |
| Property | anti-corrosion, high temperature resistance |
| Technology | extrusion, forging and rolling |
| Test and Quality | dimension inspection |
| appearance quality test |
| process performance test |
| mechanical properities test |
| The specification would be changed by the customers' requirements. |
Specification:
| Width, mm | Thickness, mm | Thickness deviation, min, mm | Flatness, % |
| <300mm | >0.13mm | ±0.025mm | 4% |
| ≥300mm | >0.25mm | ±0.06mm | 5%-8% |
Note: Sheet ( 0.13mm ≤thickness ≤ 4.75mm )
Plate ( thickness >4.75mm )
Other dimensions can be negotiated.
Applications: For producing electric light source parts, components of electric vacuum and electric power semiconductor For producing Mo-boats, heat shield and heat bodies in high temperature furnace Used to produce Sputtering Targets Size: 0.05~50.0mm(Thickness) × 50~800mm(Width) × 100~3000mm
Ⅰ、Physical and chemical properties
1 Purity：Mo ≥99.95%；
2 Density： ≥10.2g/cm3；
3 Flatness： ≤2%；
Ⅱ、Measurements and tolerances
| Thickness | Thickness tolerance | Width | Widthtolerance | Length | Length tolerance | Delivery condition |
| ＜0.2 | ±0.02 | 10~150 | ±2 | 500 | ±2 | Cold rolled |
| 0.3 | ±0.03 | 10~250 | ±2 | 500 | ±2 | Cold rolled |
| 0.4 | ±0.04 | 10~250 | ±2 | 500 | ±2 | Cold rolled |
| 0.5 | ±0.05 | 10~300 | ±2 | 500 | ±2 | Cold rolled |
| 0.8 | ±0.07 | 10~300 | ±0.5 | 500 | ±0.5 | Cold rolled |
| 1.0 | ±0.08 | 10~300 | ±0.5 | 600 | ±0.5 | Cold rolled |
| 1.5 | ±0.12 | 10~400 | ±0.5 | 600 | ±0.5 | Cold rolled |
| 2.0 | ±0.12 | 10~500 | ±0.5 | 700 | ±0.5 | Cold rolled |
| 3.0 | ±0.20 | 10~500 | ±0.5 | 600 | ±0.5 | Hot rolled |
| 4.0 | ±0.30 | 10~500 | ±0.5 | 600 | ±0.5 | Hot rolled |
| ≥5.0 | ±0.40% | 10~550 | ±0.5 | 600 | ±0.5 | Hot rolled |
Special sizes can be manufactured based on customers' requirements
Ⅲ、Manufacture process and equipment
| Item | Process | Equipment | Quality check point |
|
|
| 1 Physical and chemical properties |
| 1 | Mo billet |
| 2 Measurements of sheet billet |
| 2 | Check |
| 3 Surface quality |
|
|
| 4 Unit net weight of billet material |
| 3 | Hot rolled | Hot mill | 1 Measurements (thickness, width) |
| 4 | Annealing | 200T press machine | 2 Surface crack, stratification for two ends |
| 5 | Alkali wash | Alkali bath furnace | 3 Skew rolling |
| 6 | Check |
| 4 Flatness |
| 7 | Warm rolled | Four –high cold mill | 1 Measurements (length, width and thickness) |
| 8 | Vacuum annealing | Vacuum annealing furnace | 2 Side crack, bubbles on surface |
| 9 | Check |
| 3 Flatness |
| 10 | Cold rolled | Four –high cold mill | 1 Density |
| 11 | Leveling | W43G series straightener | 2 Measurements (length, width, and thickness) |
| 12 | Cut | Hydraulic plate shears | 3 Surface quality, bubbles on surface |
| 13 | Vacuum annealing | Vacuum annealing furnace | 5 Roll mark, stress ,Flatness |
| 14 | Check |
| 6 Quality standard：GB/T3876-2007 or ASTM |
| 15 | Package |
| 7 Show certificate of quality |
Ⅳ、Application
After rolling and processing with deflection reaching 60% , the density of molybdenum sheet (mo sheet, moly sheet) basically comes close to molybdenum’s theory density. Therefore, molybdenum sheet possesses the properties of high density, balanced internal structure and excellent high creep strength temperature. Molybdenum sheet is widely used in reflection shield, cover plate applied in the sapphire growth furnace, reflection shield, heating tape, connecting pieces applied in vacuum furnace, titanium sputtering target applied in plasma coating film, and high temperature resistance boats.
