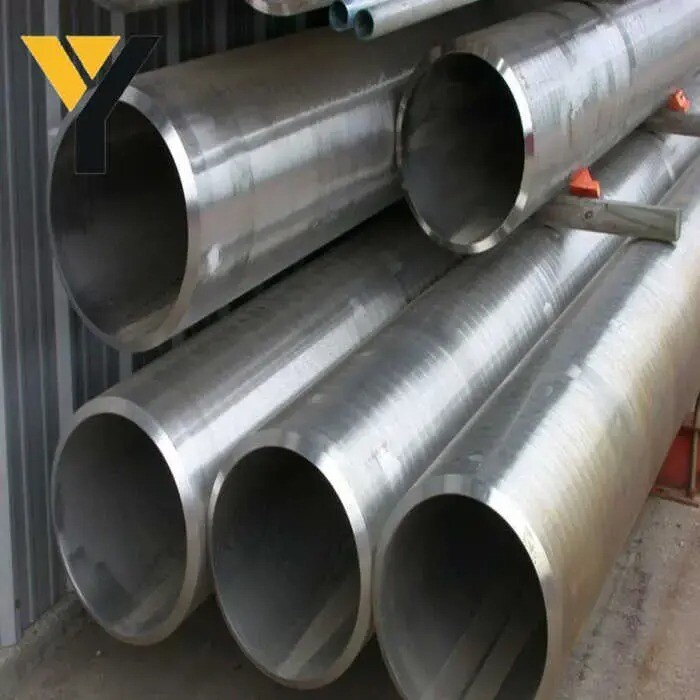

Monel 400 werkstoff nr. 2.4360 Pipes & Tubes Manufacturer, Exporter & Suppliers in China., ASTM B161 / 163 / 725 / 775 Monel UNS No. N04400 Seamless Pipes & Tubes, Welded Pipes & Tubes Suppliers. We export high quality Monel 400 ASTM B163 Seamless Pipe & ASTM A/ASME SA213/A249/A269/A312/A358 CL. I to V ASTM B163, ASTM B165/725/730 Monel Pipe
Specification
Size | 15"NB TO 150"NB IN |
Standards | ASTM / ASME SB 163 / 165 |
Range | 6.35 mm OD upto 254 mm OD in 0.6 TO 20 mm thickness. |
Length | Double Random, Single Random, Cut Length |
Type | Seamless, Welded, Fabricated, ERW / CDW |
Form | Round, Rectangular, Hydraulic, Square |
Grades | Monel 400 (UNS No. N04400) Pipes & Tubes. |
| Monel 400 Seamless Pipes & Tubes: B 161 / SB 163 |
| Monel 400 Welded Pipes & Tubes: B 725 / SB 775 |
Chemical Composition
Monel 400 | Ni | Fe | C | Mn | Si | Cu | Al | S |
63.0 min | 1.0 - 2.5 | 0.3 max | 2.0 max | 0.5 max | 28.0 - 34.0 | 0.50 max | 0.02 max |
Mechanical & Physical Properties
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
