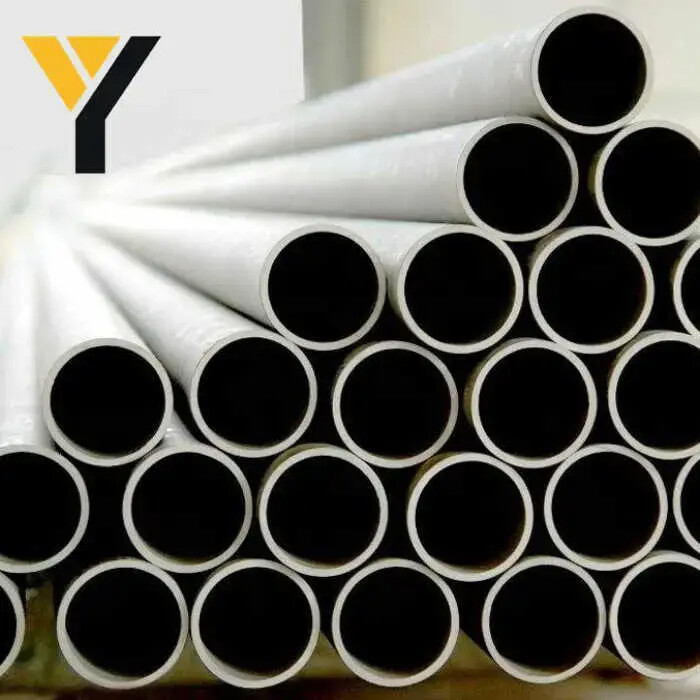

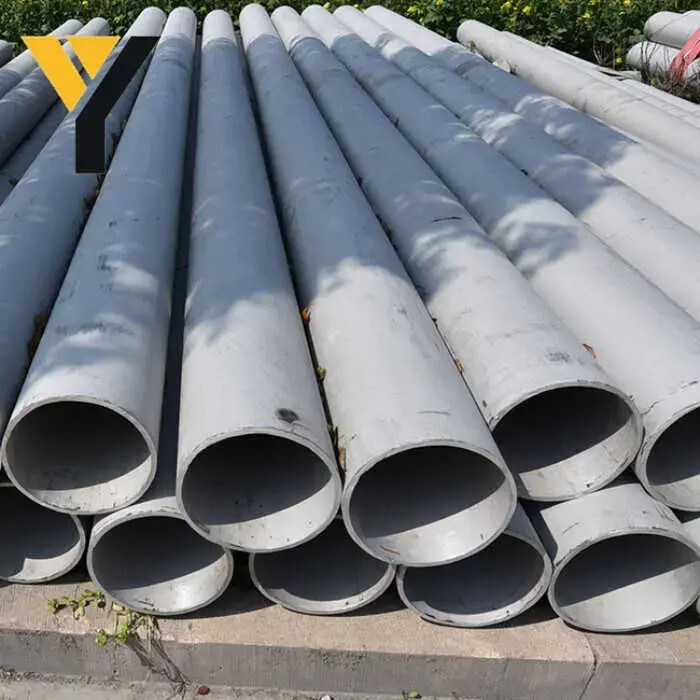

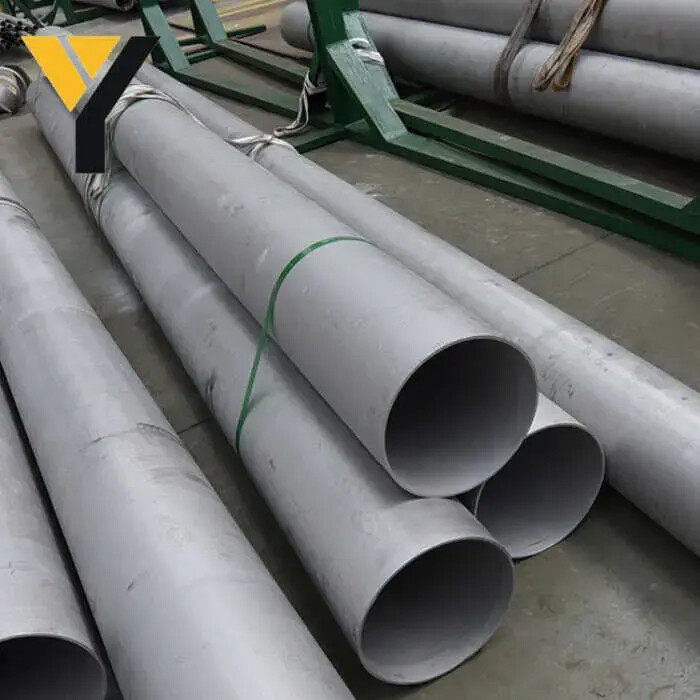

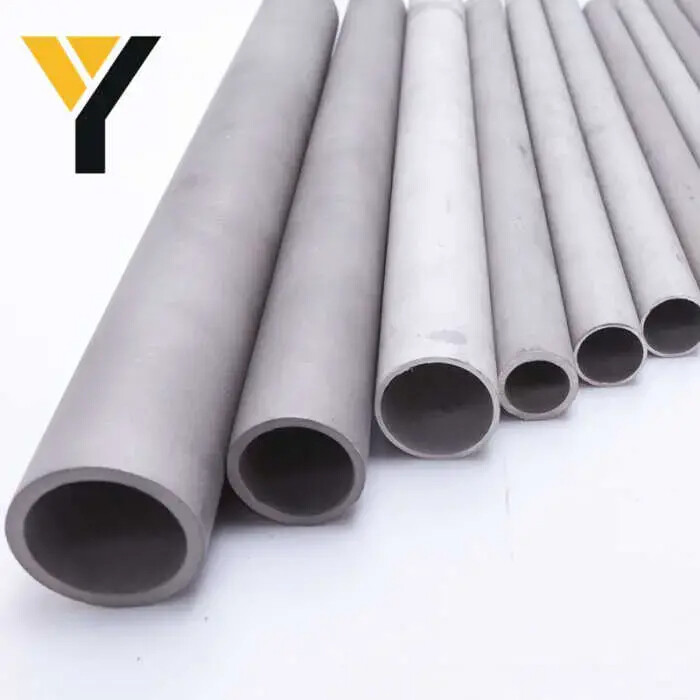

C276 Hastelloy Seamless Pipes
1. Item: Stainless Steel Tube / SS Pipe
2. Standard: ASTM, AISI, GB, JIS, as customers' request
3. Technique: Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
Get A Free Quote
Description
GradesTP series - 201, 304, 304H, 304L, 304N, 304LN, 309, 310, 310S, 316, 316H, 316L, 316LN, 316Ti, 317, 317L, 321, 321H, 347, 347H, 904L. UNS series - S31803, S32750, S32760, NO8904.
SpecificationsASTM A249, A269, A270
Size1/8” NB to 24” NB, 1/4” OD to 24” OD sizes stainless steel welded tubes also available
Outer Diameter1/4" to 6" (6.35-165.2mm)
Wall Thickness0.4mm upto client requirement
LengthUp to 6 meters, custom cut lengths
TypeSeamless, Welded, Bright Annealed, Mechanically Polished, Electropolished, Semi Welded
FinishBA Finish inside and outside, Electropolished finish inside and outside



ASME SB622 Hastelloy C276 Seamless Pipes Manufacturer, Hastelloy C276 ASME SB622 Round Pipes, Hastelloy C276 Polished Pipes, ASME SB626 Welded Pipes & Tubes, Hastelloy C276 Black Round Tubes Exporter.



Hastelloy C276 Pipes & Tubing Equivalent Grades

STANDARDWERKSTOFF NR.UNSJISORGOSTAFNOREN
Hastelloy C2762.4819N10276NW 0276ЭП760ХН65МВУ-NiMo16Cr15W

Chemial Composition

ElementHastelloy C276
NiBal
C0.01 max
Mn1.0 max
Co2.5 max
S0.03 max
Si0.08 max
Cr14.5 – 16.5
Mo15 – 17
Fe4 – 7
W3 – 4.5
v0.35 max
P0.04 max

Mechanical Properties

ElementHastelloy C276
Density8.89 g/cm3
Melting Point1370 °C (2500 °F)
Tensile StrengthPsi – 1,15,000 , MPa – 790
Yield Strength (0.2%Offset)Psi – 52,000 , MPa – 355
Elongation40 %
Hardness (Brinell)-


Hastelloy C-276® is a nickel-molybdenum-chromium alloy with excellent corrosion resistance in severe environments. The high nickel and molybdenum contents make the nickel steel alloy especially resistant to pitting and crevice corrosion in reducing environments while chromium conveys resistance to oxidizing media. Although there are several variations of the Hastelloy nickel alloy, Hastelloy C-276 is by far the most widely used.

We offer these UNS N10276 Pipes and Tubes in international and national quality of standards at cost-effective rates to our patrons. As a manufacturer, supplier, stockiest and exporter, we offer these Hastelloy Alloy C276 Pipes and Tubes in custom-made sizes and thicknesses as per the exact demands of our esteemed clients.

Hastelloy C-276® sheet is available in thicknesses ranging from .025 to .120". Hastelloy C-276® strip in coil from is available in lighter gauges up 24" wide. Hastelloy C-276® plate is available up 3" thick. Hastelloy C-276® bar is available in wrought bar up to 12" diameter and larger sizes and shapes may be forged to order. Hastelloy C-276® seamless pipe is available up to 6" NB. Larger sizes are available in welded construction (100% X-ray) and can also be fabricated to order. Redrawn tubes and tubing with tight tolerances can be supplied in almost any size no matter how small the size or quantity.

Available forms of Hastelloy C-276® are seamless pipe, welded pipe, seamless tube, welded tube, bar, wire, sheet, plate, forgings, pipe fittings and flanges.
