99.99% Pure Magnesium Alloy Extruded Bar/Rod
1. Form: sheet, coil, strip, bar, tube, wire
2. Supply capacity: more than 5000T
3. From the quantitative: more than 1T
4. Delivery time: 3-45 days
5. Port Delivery: Shanghai
Get A Free Quote
Description

99.99% Pure Magnesium Alloy Extruded Bar/Rod


Magnesium Profiles for Concrete Tools, Construction, Recreation Products, LED lamps,

Bicycle Tubesand Pipes, Wheelchairs, medical equipment, fitness equipment etc.

It is the lightest in the practical metal, high strength, high rigidity, and also has Good shock absorption performance.


♦ Physical Properties :

Density: 1.78

Coefficient of thermal expansion: 26.8 x 10-6K-1

Specific heat: 1040 Jkg-1k-1

Thermal conductivity: 76.9Wm-1k-1

Electrical resistivity: 92nΩm

Modulus of elasticity: 45 x 109Pa

Poissons ratio: 0.35

Melting range: 566 - 632°C



Specifications

Type: AZ31B, ZK61M, AZ80A, AZ91D, M2M, ME20M, AZ40

Remarks: According to the requirements of sawing and heat treatment
UK Standard ZK60 WE43 Magnesium Metal Plate Small Modulus Of Elasticity



Magnesium Alloy Chemical composition:

Alloy ElementTypeChemical Composition%Other elements b
MgAlZnMnCeZrSiFeCaCuNiBeSub-totaltotal
MgAlZnAZ31BBalance2.5-3.50.6-1.40.1-0.2------≤0.08≤0.003≤0.04≤0.01≤0.001---≤0.05≤0.30
AZ40MBalance3.0-4.00.2-0.80.15-0.5------≤0.10≤0.05---≤0.05≤0.005≤0.01≤0.01≤0.30
AZ80ABalance7.8-9.20.2-0.80.12-0.5------≤0.10≤0.005---≤0.05≤0.005------≤0.30
AZ91DBalance8.5-9.50.45-0.90.17-0.4------≤0.08≤0.004---≤0.025≤0.0010.0005-≤0.01≤0.30
0.003
MgMnM2MBalance≤0.20≤0.301.3-2.5------≤0.10≤0.05---≤0.05≤0.007≤0.01≤0.01≤0.20
MgZnZrZK61MBalance≤0.055.0-6.0≤0.10---0.3-0.9≤0.05≤0.05---≤0.05≤0.005≤0.01≤0.01≤0.30
MgMnReME20MBalance≤0.20≤0.301.32-2.20.15-0.35---≤0.10≤0.05---≤0.05≤0.007≤0.01≤0.01≤0.30

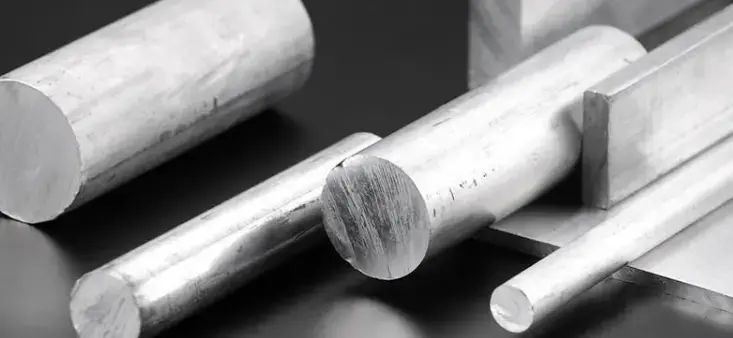

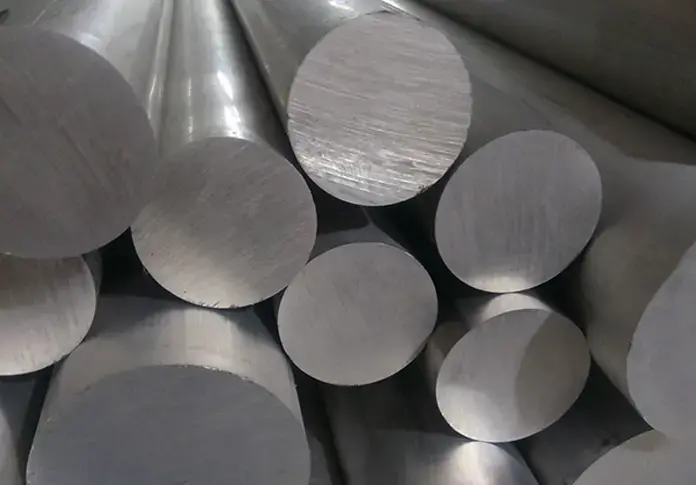

product shows:

99.99% Pure Magnesium Alloy Extruded Bar/Rod

99.99% Pure Magnesium Alloy Extruded Bar/Rod

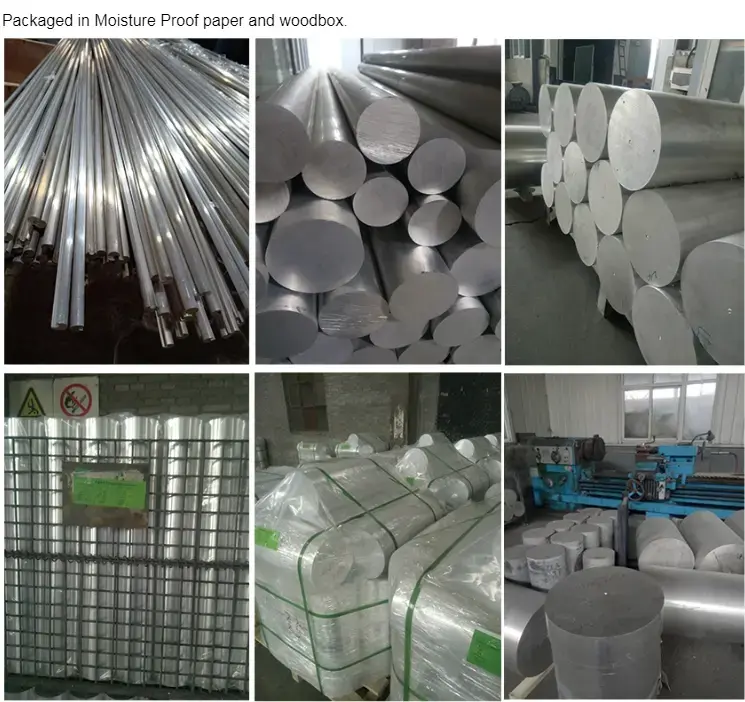

package:

99.99% Pure Magnesium Alloy Extruded Bar/Rod
