  • High quality Complete specification ASTM a276 2205 2507 4140 310s 301 304 304l 316L 321 431stainless steel round bar

›

High quality Complete specification ASTM a276 2205 2507 4140 310s 301 304 304l 316L 321 431stainless steel round bar
Grade:201J1/201J2/202/304/304L/304H/316/316L/316Ti/321/309S/310S/904L/410/420J1/420J2/430/441/443/436/
Type:Round, Round,Square,flat,Angle
Process method:Cold Drawn, Hot Rolled,Forged
Heat treatment:Annealed
Dimensions:0.1-500mm
Material439/409/409L/1.4529（NO8926）/S32760/347H/317L/Monel400/Hastelloy C-22/C-276/S31254(254SMO)/2205/2507/600/625/800/825
Namestainless steel bar
1. Samples: $33.49/piece Min. order : 1 piece
2. Lead time: Quantity (pieces) 1 - 500 ,5days ,> 500Lead time (days) To be negotiated
3. Customization: Customized logo(Min. order 100 pieces) Customized packaging(Min. order 100 pieces)
Get A Free Quote
Description

High quality Complete specification ASTM a276 2205 2507 4140 310s 301 304 304l 316L 321 431stainless steel round bar

Products Description
________________________________________________________________________________________________________
bar1
bar8
bar9

Details Images
_______________________________________________________________________________________________________________________

Product NameBar and Rod
TypeRound bar,Angle bar,Channel bar,Square bar,Flat bar,I/H bar,Hexagonal bar and profiles
SurfaceBlack,bright,rough turned,grinding,centreless ground etc
StandardGB,AISI,ASTM,DIN,EN,SUS,UNS etc
Diameter0.5-500mm
Length1M,2M,3M,5.8M,6M,9M,10M,11.8M,12M or according to the customer’s demand
Payment Terms30% T/T in advance, balance before delivery
TechniqueHot Rolled,Cold Rolled,Cold Drawn,Forged
ToleranceH8,H9 or as required
MaterialMajor Grade:
200 series: 201,202,202Cu,204Cu
300 series: 301,303,303Cu,304,304Cu,304L,305,309,310,310S,316,316L,321
400 series: 409,410,420,430,431,440c,444,446
600 series: 630,631 (17-4ph,17-7ph)
Duplex: 2205,2507,904L
Others: nitronic 50,nitronic 60,nimonic 75,nimonic 80A,nimonic 90,inconel 600,inconel 625,inconel 718,inconel 725,alloy 20,alloy 28,incoloy 800,incoloy 825,hastelloy C276,hastelloy C22,hastelloy X,monel 400,monel k-500 etc.


 ◆ More stainless steel bar shape

Round barDiameter: 3mm~800mm
Angle barSize: 3mm*20mm*20mm~12mm*100mm*100mm
Square barSize: 4mm*4mm~100mm*100mm
Flat barThickness: 2mm~100mm
Width: 10mm~500mm
HexagonalSize: 2mm~100mm



GradeCSiMnPSNiCrMo
201≤0.15≤0.755.5-7.5≤0.06≤0.033.50-5.5016.0-18.0-
202≤0.15≤1.07.5-10.0≤0.06≤0.034.0-6.017.0-19.0-
301≤0.15≤1.0≤2.0≤0.045≤0.036.0-8.016.0-18.0-
302≤0.15≤1.0≤2.0≤0.035≤0.038.0-10.017.0-19.0-
304≤0.08≤1.0≤2.0≤0.045≤0.038.0-11.018.0-20.0-
304L≤0.03≤1.0≤2.0≤0.035≤0.039.0-12.018.0-20.0-
309S≤0.08≤1.0≤2.0≤0.045≤0.0312.0-15.022.0-24.0-
310S≤0.08≤1.5≤2.0≤0.035≤0.0319.0-22.024.0-26.0-
316≤0.08≤1.0≤2.0≤0.045≤0.0310.0-14.016.0-18.02.0-3.0
316L≤0.03≤1.0≤2.0≤0.045≤0.0311.0-14.016.0-18.02.0-3.0
321≤0.08≤1.0≤2.0≤0.035≤0.039.0-12.017.0-19.0-
410≤0.15≤1.0≤1.0≤0.035≤0.03-11.5-13.5-
430≤0.12≤0.75≤1.0≤0.04≤0.03≤0.6016.0-18.0-
904L≤2.0≤0.045≤1.0≤0.035-23.0-28.019.0-23.04.0-5.0
2205≤0.03≤1.0≤2.0≤0.03≤0.024.5-6.522.0-23.03.0-3.5
2207≤0.03≤0.80≤1.2≤0.035≤0.026.0-8.024.0-26.03.0-5.0
630(17-4PH)≤0.07≤1.0≤1.0≤0.035≤0.0303.00-5.0015.5-17.5-

bar2
bar3

bar4

bar5


Company Profile
________________________________________________________________________________________________________

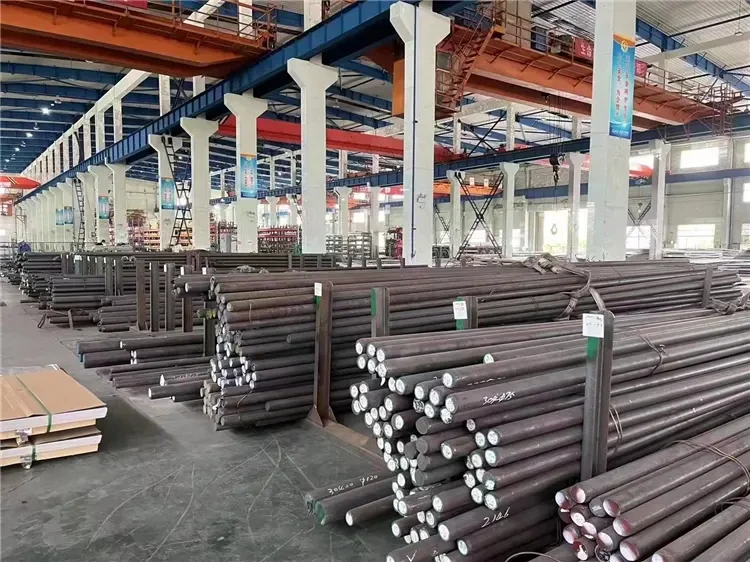

factory

Shanghai Yila Stainless Steel Products Co.,Ltd. is your stainless steel expert. Sufficient inventory

and complete specifications are our first major advantages.The main inventory are stainless steel

plates, stainless steel sheets, stainless stel coils, stainless steel precision steel strips, stain-less steel

flat bar, stainless steel channel bar, and stainless steel Angle bar, stainless steel H-beam bar, stainless

steel round bar, Duplex Steel,Monel Alloy,Hashi alloy……



Production Process

____________________________________________________________________________________________________

bar5

Our advantages:

______________________________________________________________________________________________________

6
Factory
________________________________________________________________________________________________________
 7
Product packaging
___________________________________________________________________________________________________________

Payment TermsT/T, L/C, Trade Assurance, Cash or as required
Price TermsFOB, CRF, CIF, EXW
Delivery TimeGenerally it is 5-10 days if the goods are in stock. or it is 30 days if the goods are not in stock, it is according to quantity.
PackingIn bundles, standard export package or as per required
Shipping DetailsLCL  FCL
Container Info20ft GP: L5.8m * W2.13m * H2.18m , about 27 CBM, Loading Max.26 Tons

40ft GP: L11.8m * W2.13m * H2.18m, about 54 CBM, Loading Max.26 Tons

40ft HG: L11.8m * W2.13m * H2.72m, about 68 CBM, Loading Max.26 Tons
8
FAQ
_________________________________________________________________________________________________________
Q: How to get samples?
A: The catalog and most samples have been prepared for you. It takes about 5-7 days for customized samples. Please contact us for more support.

Q: What is the minimum order quantity?
A: If you want to order a small number of orders or trial orders, please feel free to contact us, we can meet your requirements.

Q: Can you OEM or ODM?
A: Yes, we have a strong development team. Products can be produced according to your requirements.

Q: How long can you guarantee this product/complete? A: The color is guaranteed for more than 10 years. The quality certificate of the original materials can be provided.

Q: Which payment method do you accept?
A: We accept payment by wire transfer or letter of credit. In addition, you can also transfer money to our bank account, Western Union or PayPal.

Q: What is the average delivery time?
A: For samples, the delivery time is about 5-7 days. For mass production, the delivery time is 10-25 days. In any case, we will try our best to meet your needs.

Q: Can you provide relevant documents?
A: Yes, we can provide most of the required documents, such as inspection certificate/rolling mill inspection certificate, insurance, certificate of origin, SASO, E form and other export documents.
