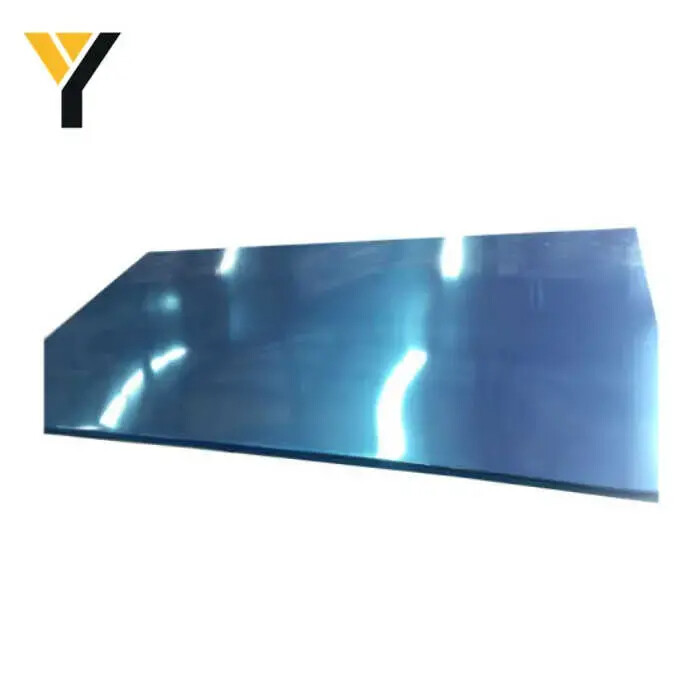

ASTM Cold Rolled 4X8 2b 0.1mm Surface Stainless Steel Sheet
Shanghai Yila supplies different grades stainless steel plate with full size. The thickness of them and nickel-base alloy plates we manufacture ranges from 3.0mm to 120mm.
Get A Free Quote
Description

Shanghai Yila  manufactures and supplies different grades stainless steel plate with full size. The thickness of them and nickel-base alloy plates we manufacture ranges from 3.0mm to 120mm.

You can buy different brands stainless plate in Shanghai Yila , like Baosteel, ZPSS, TISCO, JISCO, etc.

Stainless steel plate corrosion resistant plates and nickel-base alloy plates are inventoried in 200 series, 300 series, 400 series, Duplex/Super Duplex stainless steel(2205, 2507), 904L, 6MO Steel(254SMO, N08367, N08926), Alloy400, Alloy625, Alloy600, Alloy825, Alloy800/800H/800HT, Alloy C276, etc. Stainless steel hot rolled plates usually come in different dimensions, such as 1000 x 2000mm, 1219 x 2438mm, 1500 x 6000mm, 1800 x 6000mm, 2000 x 6000mm.

Shanghai Yila  provides a number of processing platform, like stainless plate surface polishing platform, SS plate cutting and slitting platform, stainless steel plate forming, machining, welding platform so that we can meet all kinds of requirements.


Specification
SizeThickness: 3.0 ~ 120 mm; Width: 1000 ~ 3000mm; Length: 2000 ~ 6000mm, or as Request.
TechniquesHot Rolled, Cold Rolled
Surface2B, BA, 8K, 6K, Mirror Finished, No.1, No.2, No.4, Hair Line with PVC
Theoretical Weight(kg/m)Weight/meter = T*W*L*7.93(7.98)    T in mm, Both W and L in m.

Note:
 L is the specified length.
 W is the specified width.
 T is the specified thickness

Main Grades and Standards
 1.Standards:
 AISI, ASTM, DIN, EN, GB and JIS;
 ASTM A240/SA240,ASTM B688, ASTM B463/SB463 ASTM B168/SB168, ASTM B443/SB443, B424/SB424, B625/SB625, B575/SB575, JIS G4304, G4305, GB/T 4237, GB/T 8165, BS 1449, DIN17460, DIN 17441
 2.Materials(Grade):
 300series: 301,302,303,304,304L,304H,309,309s,310,310S,316,316L,316H, 316Ti,317L,321,347;
 200series:201,202,202cu, 204;
 400series:409,409L,410,420,430,431,440;
 Duplex/Super Duplex Stainless: Duplex2205/s31803/s32205, Duplex2507, S32750, S32760
 Nickel-base Alloy: S31254, N08367, N08926, N08904, N08020, N06600, N06625, N08825, N08031, N06059, N10276, N06022, N10665, N10665, N10675, N02200/N02201, N08800, N08810, S30815;
 Others: 330/N08330, 333/N06333,660,630,631,17-4ph,17-7 ph, etc.


Grade22052507
Al-6XN25-6SMo254SMo904L
UNSS32205S32750S32760N08367N08926S31254N08904
W.Nr1.44621.44101.4501
1.45291.45471.4539
StandardA240/SA240A240/SA240A240/SA240B688A240/SA240A240/SA240A240/SA240
GradeAlloy20Alloy600Alloy625Alloy825Alloy31Alloy59Alloy C276
UNSN08020N06600N06625N08825N08031N06059N10276
W.Nr2.46602.48162.48562.48581.45622.4605
StandardB463/SB463B168/SB168B443/SB443B424/SB424B625/SB625B575/SB575B575/SB575
GradeAlloy C22Alloy B2Alloy B3Alloy 800Alloy800H/800HTAlloy601253MA
UNSN06022N10665N10675N08800N08810N06601S30815
W.Nr2.4602

1.48761.4958/1.49592.48511.4893
StandardB575/SB575B333/SB333B333/SB333B409/SB409B409/SB409B168/SB168A240/SA240



Chemical Composition

GradeSTS304STS 316STS430STS201
Elong(10%)Above 4030MINAbove 2250-60
Hardness≤200HV≤200HVBelow 200HRB100,HV 230
Cr(%)18-2016-1816-1816-18
Ni(%)8 to 1010 to 14≤0.60%0.5-1.5
C(%)≤0.08≤0.07≤0.12%≤0.15
