304 Stainless Steel Sheet / Plate / Coil
Grade:201J1/201J2/202/304/304L/304H/316/316L/316Ti/321/309S/310S/904L/410/420J1/420J2/430/441/443/436/
Surface:No.3/No.4/HL 2B NO.1 BA
Brand:TISCO/ZPSCO/JISCO
Width:500mm/ 1000mm/ 1220mm/ 1250mm/ 1500mm 2000mm
Thickness:0.05mm-280mm
Material439/409/409L/1.4529(NO8926)/S32760/347H/317L/Monel400/Hastelloy C-22/C-276/S31254(254SMO)/2205/2507/600/625/800/825


1. Samples:$33.49/piece
2. Min. order : 1 piece
3. Lead time:Quantity (pieces) 1 - 500 ,5days ,> 500Lead time (days) To be negotiated
4. Customization:Customized logo(Min. order 100 pieces) Customized packaging(Min. order 100 pieces)
Get A Free Quote
Description

Stainless Steel 304 Plates, SS 304 Sheets, SS UNS S30400 Plates, SS 304 Coils, AISI 304 Plate, Stainless Steel 304 Slatting Coil, SS 304 Circle, SUS 304 Plate, 304 Stainless Steel Hot Rolled Plates Supplier in Mumbai, India.

ASTM A240 Stainless Steel 304 Shim Sheets, SS Werkstoff No 1.4301 Sheets, Stainless Steel 304 Circle, Stainless Steel 304 Cold Rolled Plates, 304 SS Chequered Plate Exporter, SS 304 Perforated Sheets Dealer in China

Distributors Of ASME SA240 Stainless Steel 304 Coils, 304 Stainless Steel 2B Plate Stockholder, SS 304 Plate Cut To Size, SS GOST 08Х18Н10 Strips Stockist, Stainless Steel Plates, SS Grade 304 Polished Plates Manufacturer.



Stainless Steel 304 Sheet, Plate & Coil Specifications
SpecifcationsASTM A240 /ASME SA240
Thickness4mm-100mm
Width1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc
FinishHot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
FormCoils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.

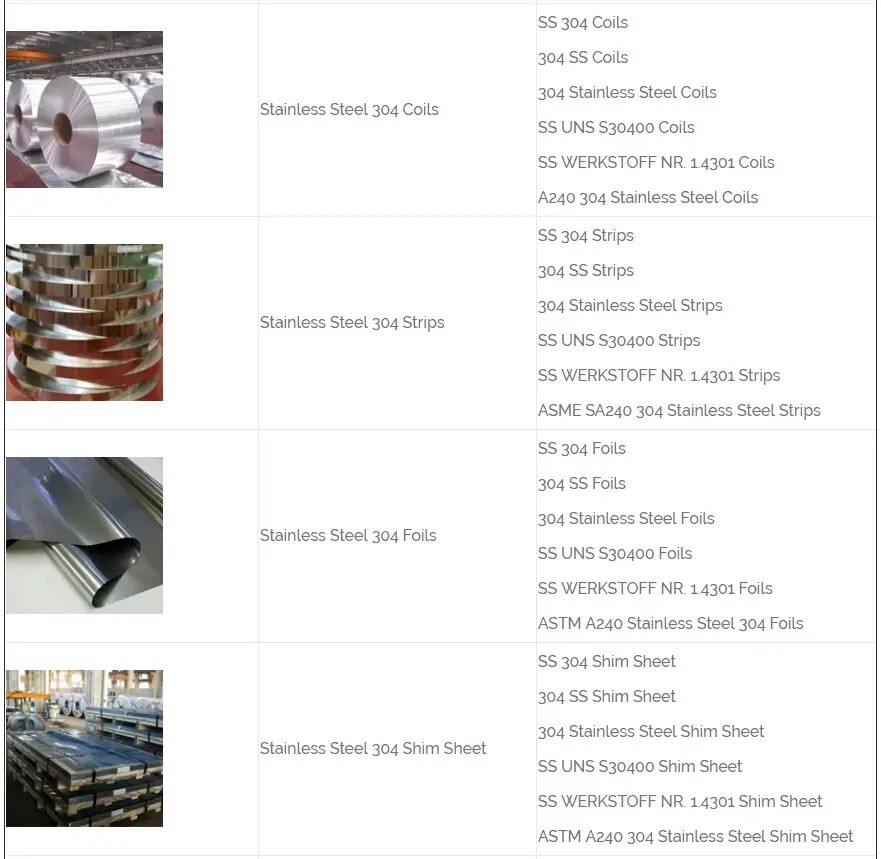

Types of Stainless Steel 304 Sheets, Plates & Coils

1480447619365228546 (1).jpeg

1480447619365228547 (1).jpeg

1480447619365228548 (1).jpeg


SS304 Plate, Sheet & Coil Chemical Composition


GradeCMnSiPSCrMoNiN
SS 3040.08 max2 max0.75 max0.045 max0.030 max18-20-8-11-


Stainless Steel 304 Sheets, Plates & Coils Mechanical Properties


DensityMelting PointTensile StrengthYield Strength (0.2%Offset)Elongation
8.0 g/cm31400℃ (2550℉)Psi-75000, MPa-515Psi-30000, MPa-20535%


Equivalent Grades for 304 Stainless Steel Sheets & Plates


STANDARDWERKSTOFF NR.UNSJISBSGOSTAFNOREN
SS 3041.4301S30400SUS 304304S3108X18H10Z7CN18-09X5CrNi18-10

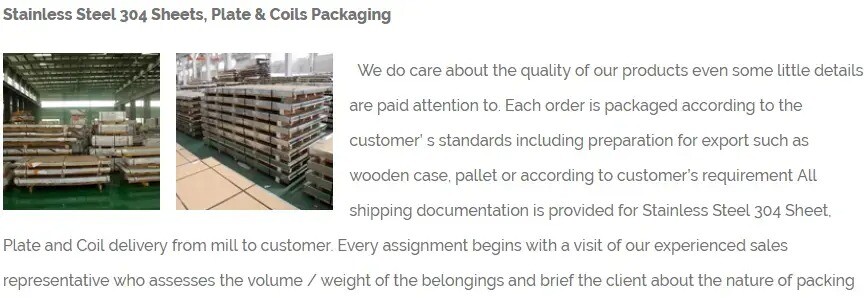

1480447619365228550 (1).jpeg
